   MAC CONFIGURATION                 http://www.netside.net/mac_config.html
  ------------------------------------------------------------------------

MacTCP

Instructions:

• Open the Control Panels folder. This can be found either in your System Folder, or under the Apple Menu in the upper left-hand corner of your screen.

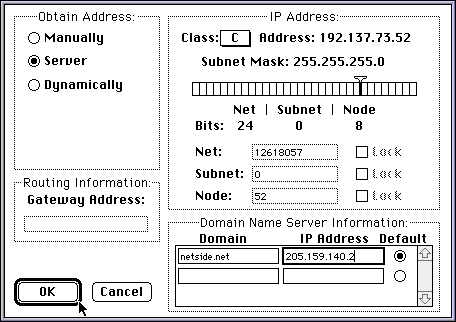

• Highlight the PPP icon in the MacTCP window, and click on "More". If you do not have the PPP icon listed, you can obtain a copy of FreePPP by downloading the files under the PPP directory from the NetSide FTP site.

• In the upper left hand window, labelled "Obtain Address:", select the entry "Server".

• In the upper right hand window, labelled "IP Address:", click on the letter beside the word "Class" and select "C".

• In the lower right hand window, labelled "Domain Name Server information", you will want to enter the domain name of netside.net in the left hand text box, and the number 205.159.140.2 in the right hand box. Click on the button all the way to the right, labelled "default".




ConfigPPP

• Create a PPP server called "netside". If there is already a server with this name, skip this step. If not, simply click on "new", and name the server as "netside".

• Click on Config.

• Set the modem port speed to 38400.

• Set Hardware Flow Control to CTS & RTS (DTR).

• Set the phone number to (531-2929)

• Set your intialization string to whatever is recommended by your modem's manufacturer, or consult this list, as recommended by Adam Engst, author of The Internet Starter Kit for Macintosh

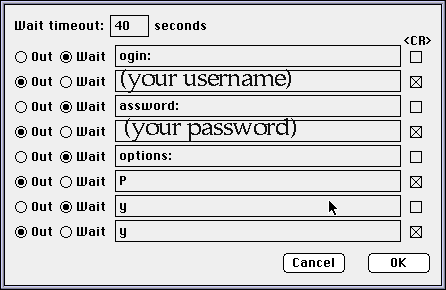

• Click on Connect Script.
  Enter the following, with each line here equal to one line of the script:

  • click on "wait", enter the text ogin:

  • click on "out", enter your own username, as assigned to you by NetSide. Click on the "CR" box all the way to the right.

  • click on "wait", enter the text assword:

  • click on "out", enter your actual password. Click on the "CR" box all the way to the right.

  • click on "wait", enter the text options:

  • click on "out", enter the text P. Click on the "CR" box all the way to the right

  • click on "wait", enter the text y

  • click on "out", enter the text y. Click on the "CR" box all the way to the right

• Click on done

• Click on OK


Getting started

• Restart your machine for the changes to take effect.

• Choose the Config PPP control panel,

• Click on Open.

• Start your application of choice, and enjoy ...

• To close, simply open the ConfigPPP control panel and click on Close.


Other Applications

[Download Netscape Software]

Obtaining MacTCP

• Have Macintosh System Software version 7.5 or 7.5.1. Macintosh System 7.5.2 included with the 7500, 8500, and 9500 PCI-based PowerMacs does not come with the MacTCP control panel.

• Purchase a copy of the MacTCP control panel. To obtain MacTCP in this fashion, you can either contact Apple Computer directly, and buy the TCP Connection Pack, or (less expensively) purchase any of a number of software/book combinations. Northwest Link recommends the comprehensive and well-written Internet Starter Kit for the Macintosh, which includes MacTCP 2.0.4.
